Split Weld Tees For Pipeline

Weld-on outlets & connections are dependable and economical with Weld On Fittings

Outlets, partial sleeves and complete sleeves are readily available for steel pipe 6” and larger with size on size and reducing outlets. Outlets and partial sleeves are also available for tank and bulkhead use. Various configurations of this design are available. Featured below are the most popular.

MATERIAL SPECIFICATIONS BODY: ASTM 283, 285 Grade C, ASTM A-36 Steel or an equivalent. Optional 304 or 316 Stainless Steel. FINISH: Heavy coat of corrosion resistant metal primer. Optional Fusion Epoxy Coating available. FLANGE: AWWA C207 Class D, ANSI 150 drilling recessed for tapping valve per MSS-SP60. Other flanges available.

Types of Split Tees Fittings

Split Tee Weld On Tapping Sleeve.
Split Tee Three Piece Weld On Saddle. Other Configurations available upon request.

Split Tee Three Piece Weld On Saddle.
Other Configurations available upon request
.

Click for more information.

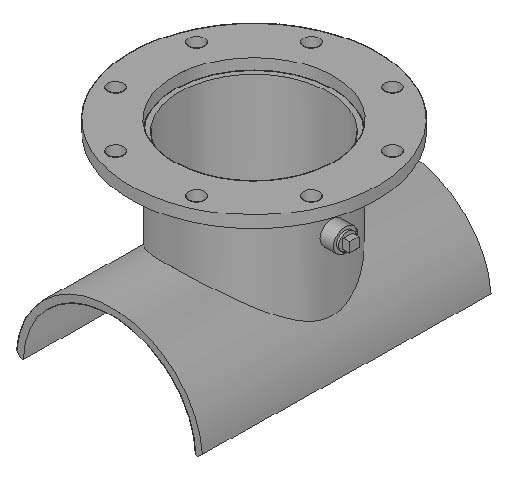

Type 1 Weld On Outlet.

Type 1 Weld On Outlet.
Other Configurations available upon request
.

Click for more information.

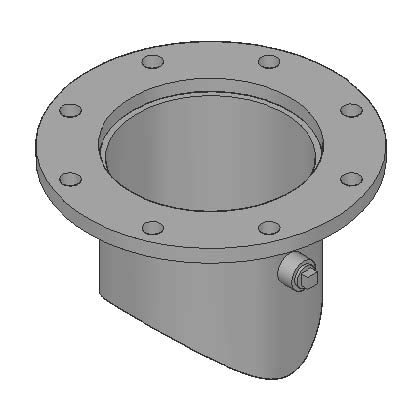

Type 3 Flanged Nozzle Weld On Outlet.

Type 3 Flanged Nozzle Weld On Outlet.
Other Configurations available upon request.

Click for more information.

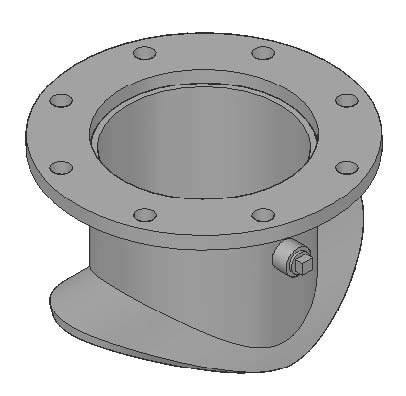

Type 4 Hat Flanged Weld On Outlet.

Type 4 Hat Flanged Weld On Outlet.
Other Configurations available upon request.

Click for more information.
